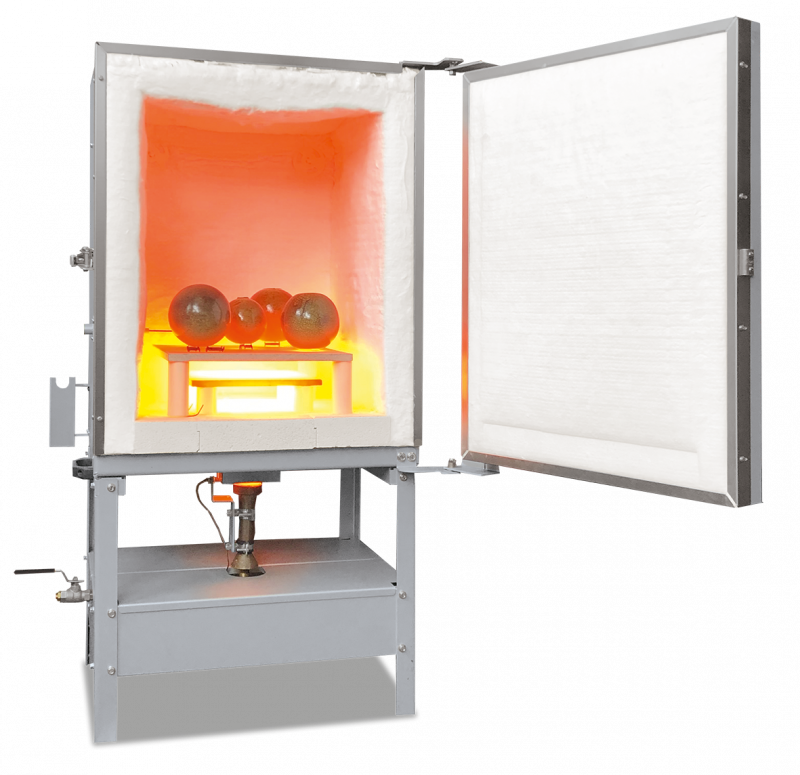

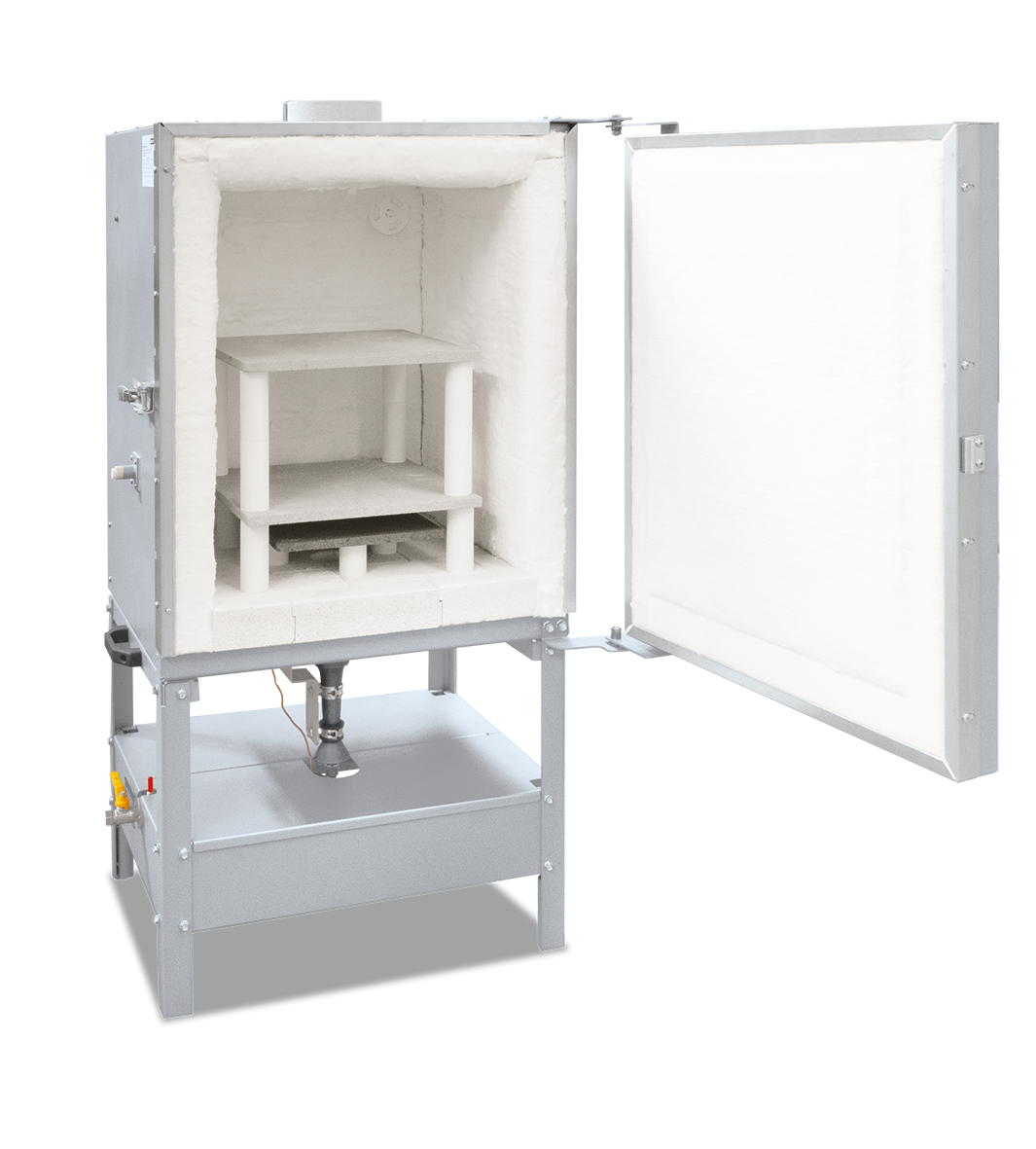

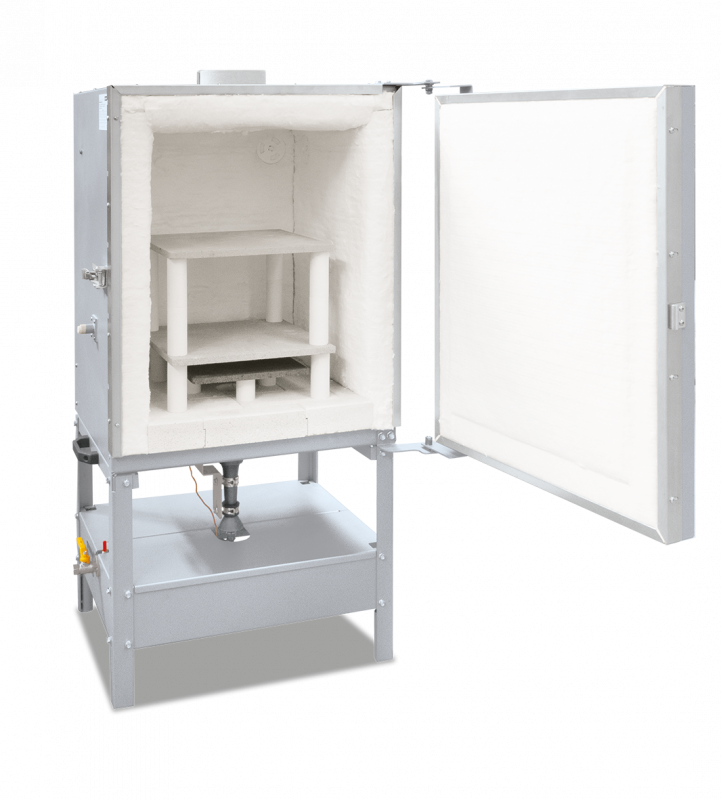

Raku is an ancient Japanese technique and means joy. The RAKU 100 chamber kiln ensures that you can also experience this joy when firing your individual pieces. The simple and ergonomic loading from the front enables clear placement of the objects to be fired. Even when hot, the kiln door can easily be opened widely so that it faces away from the operator. Of course appropriate protective clothing must still be worn. The removal of the ceramic art pieces while hot makes the firing process a real event. The subsequent rapid cooling and immersion by covering the material with leaves, straw, shavings, etc. thereby reducing the glaze. Beautiful colors and the famous craquelure on the surface give each work of art its very own character.
Standard Equipment:
- High-quality insulation with low heat-storage capacity for short heat-up times
- Special flame manipulation for good temperature uniformity
- Positioning of the gas burner under the kiln resulting in centralized heat transfer to the charge
- Scope of delivery includes a propane gas burner and a starter set of burning aids
- Door adjustable with an opening angle of approx. 270 °
- Environmentally friendly and durable powder coating of the housing
Technical Data:
Chamber dimensions: w x d x h = 45.0 x 45.0 x 57.5 cm (of which 45 cm usable height)
External dimensions: W x D x H = 80.0 x 65.0 x 127.5 cm
Power: 15 kW
Usable space: 91 liters usable, 116 liters total
Max. stock weight: 10 kg
Max temp: 1100°C
Weight - kiln: approximately 75 kg
Set includes:
1 x Nabertherm RAKU 100 kiln
4 x shelves 350 x 350 x 10 mm
16 x props Ø 40 x 100 mm
8 x props Ø 40 x 50 mm

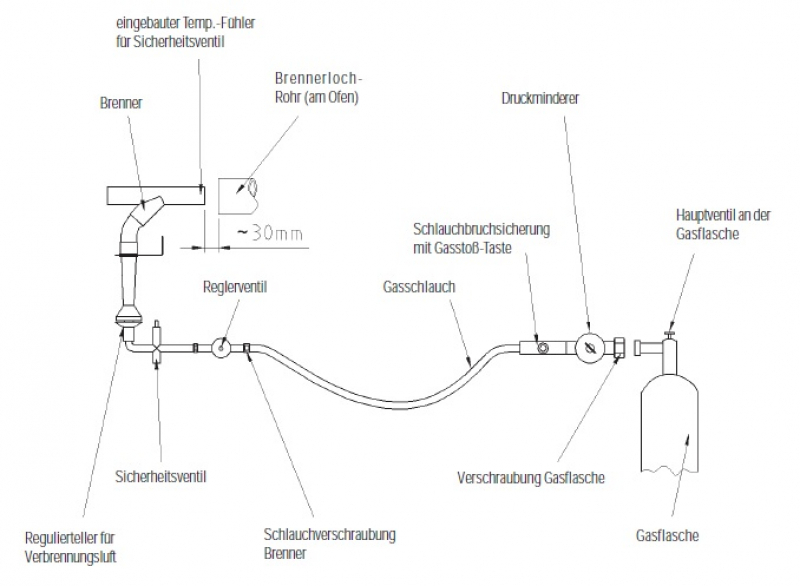

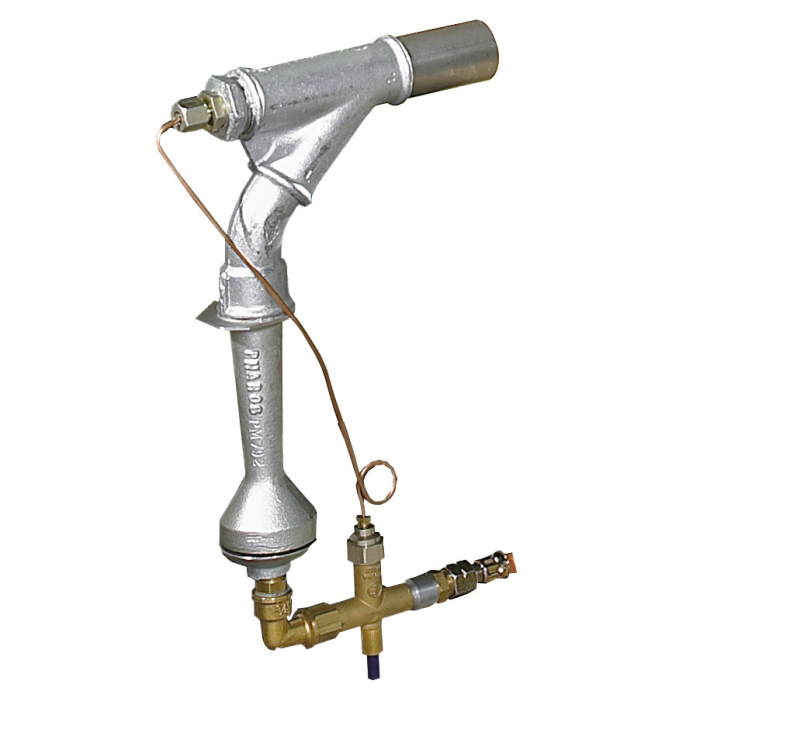

1 x Raku Burner 15 kW
1 x Hose set with pressure gauge, etc.

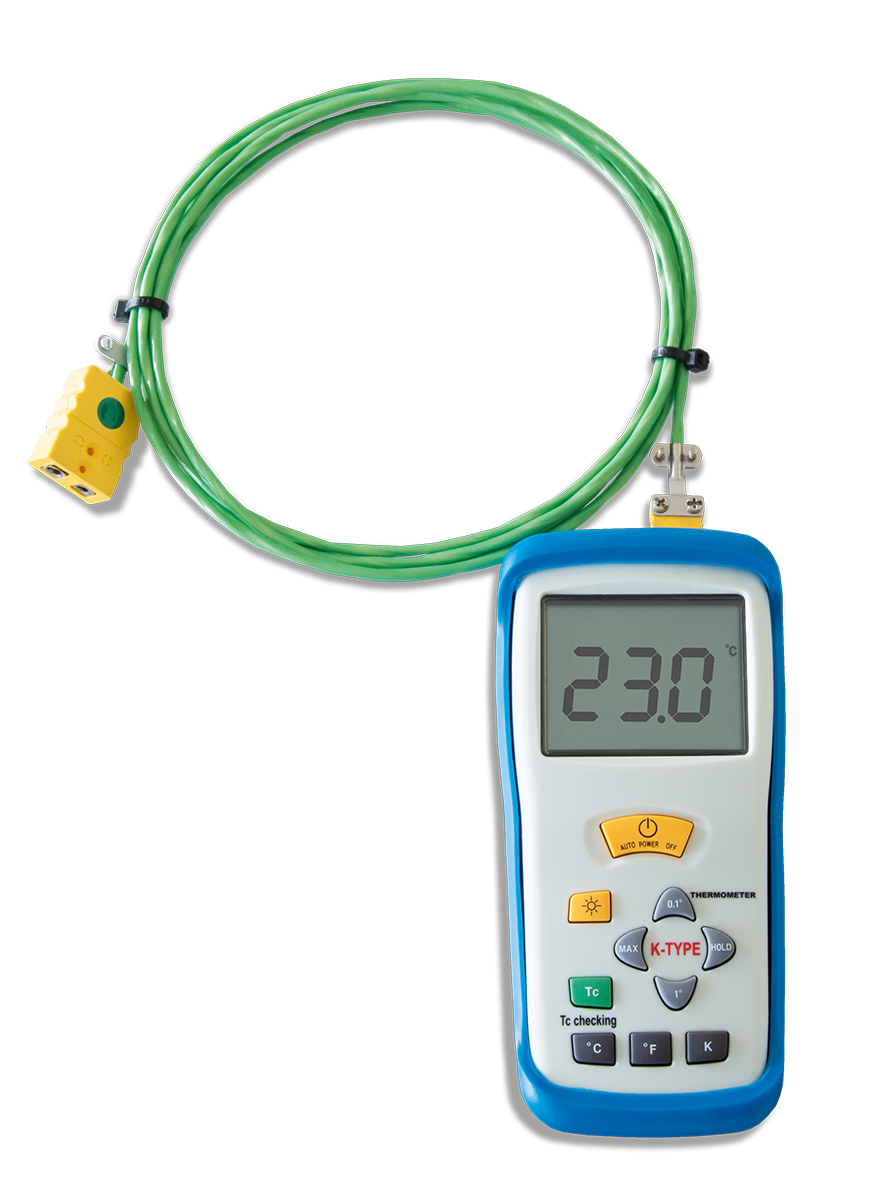

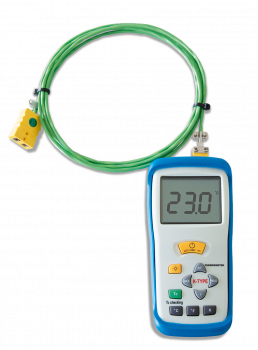

1 x Pyrometer with Thermocouple
