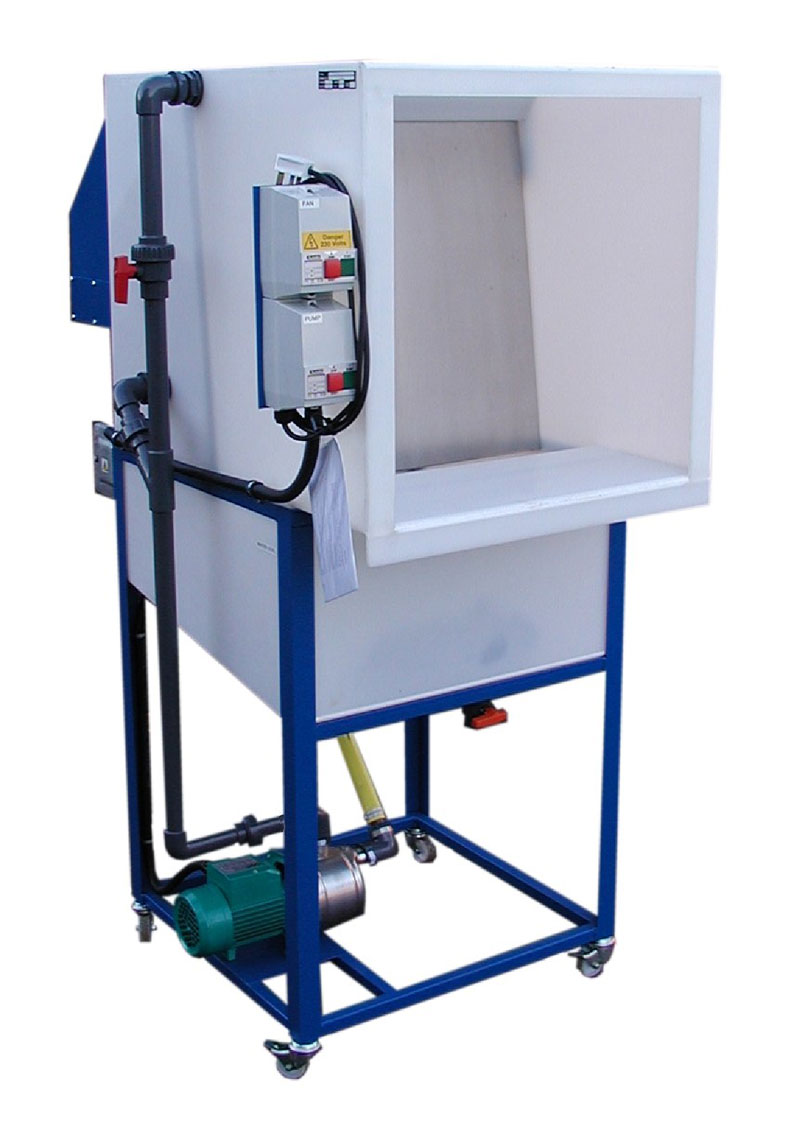

The Gladstone spraybooth has been designed to meet the ever increasing need to protect our environment. The water Wash spraybooth works on the principle of a curtain of continuous recycling water running down the rear face of the spraybooth, a glaze spray is aimed towards this curtain, the spray being guided by a powerful extraction fan, the glaze is trapped by the water curtain, whilst the air stream is pulled through the booth and into a washable stainless steel pre filter and finally into a washable filter bag. The excess glaze is washed into the tank and can at a later date be reclaimed depending on the type and colour of the glaze. There is a ball valve to allow the water to be drained and the contents of the tank removed. Any glaze materials can also be removed and disposed of safely. The booth is mounted on four castor wheels. The G165 is primarily designed to be used by the studio potter and educational faculties for low volume production, therefore the booth does not need ducting to atmosphere making it portable around the studio environment.
Dimensions: Height 1655 mm approx. x Width 720 mm approx. x Depth 1290 mm approx.
Fan: 2000 cu.ft./min.
Air extraction: 250 cu.ft./min.
Steel construction
Internal parts stainless steel
Water tank: Polypropylene
Switchgear: Thermal overload protection
Weight : 118 Kg approx.
Power: 220/240 V / 50 Hz.
Hood internal dimensions 638mm x 625mm x 420mm deep. Working depth 350mm
